ANTONIO CARRARO Serie A AFN (AF 2.90 N / AF 2.100 N)

Product Brochure

ANTONIO CARRARO Serie A AFN (AF 2.90 N / AF 2.100 N)

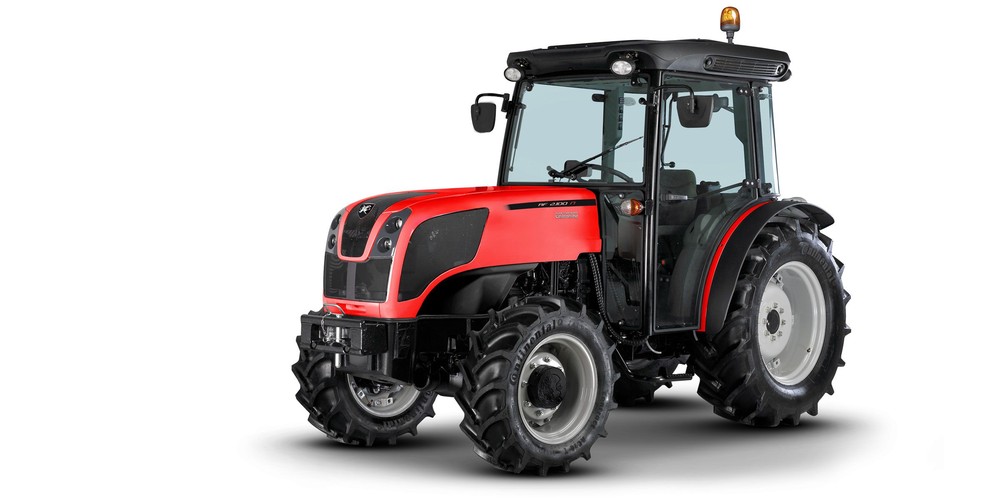

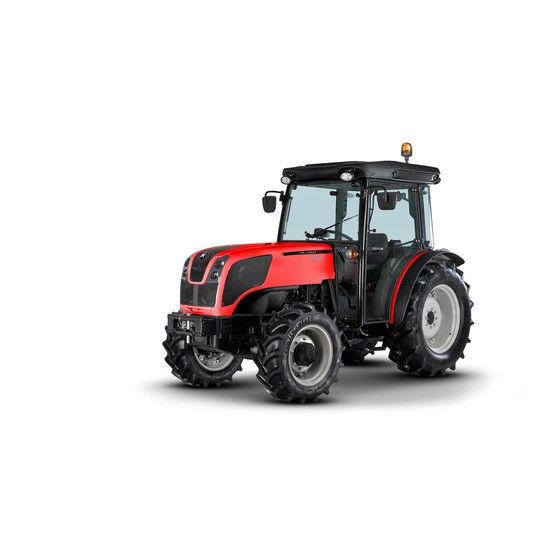

The ANTONIO CARRARO Serie A AFN is a specialised orchard tractor range, designed for vineyards, orchards, walnut and almond groves and compact open fields. Two models are available: the AF 2.90 N with the FPT F5C engine at 88.4 hp, and the AF 2.100 N with the FPT NEF engine at 100.6 hp.

Its compact design, extensive range of configuration options and modern ergonomic solutions make the Serie A suitable for every task in specialised sectors. The tractor is offered both with a cab and with a platform fitted with a folding front roll bar.

Key features

Engine and transmission: FPT engines in two power ratings; 24+24 mechanical or 24+12 electro-hydraulic shuttle transmission, both with a 40 km/h top speed.
Hydraulic system: 86 l/min in the standard configuration, 101 l/min with the optional three-pump setup. The side couplers are easy to reach and positioned for clear visibility from the driver's seat.
Rear power lift: 26 kN lifting capacity as standard, with a 30 kN option available on all models through a supplementary jack. Mechanical (standard) or electronic control.
Remote control of the electronic power lift: controls positioned on both sides of the headlight boxes, making implement hitching easier.
Front PTO and front power lift (optional): Cat. II with a lifting capacity of 1,300 kg at the ball joints.
Cab: 1,200 mm wide, soundproof and suspended on 4 silent blocks; heating as standard, air conditioning optional.

Antonio Carraro tractors carry a standard 24-month warranty. The EXG 2+2 and EXG 2+3 programmes extend cover to four or five years.

ENGINE
Manufacturer	FPT
Engine model	AF 2.90 N: F5C (EURO IIIA) · AF 2.100 N: NEF (EURO IIIA)
Displacement	AF 2.90 N: 3,200 cc · AF 2.100 N: 4,500 cc
Cylinders / configuration	4 cylinders, turbo intercooler
Cooling system	Liquid
Maximum ISO power	AF 2.90 N: 65 kW / 88.4 hp · AF 2.100 N: 74 kW / 100.6 hp
ISO power at PTO	AF 2.90 N: 55 kW / 75 hp · AF 2.100 N: 63 kW / 86 hp
Maximum power RPM	AF 2.90 N: 2,300 rpm · AF 2.100 N: 2,200 rpm
Maximum torque	AF 2.90 N: 350 Nm @ 1,300 rpm · AF 2.100 N: 430 Nm @ 1,250 rpm
Torque reserve	AF 2.90 N: 36% · AF 2.100 N: 28%
Fuel tank capacity	71 l
Fuel tank with front PTO	50 l
Auxiliary tank (optional)	19 l
Exhaust	Horizontal
ELECTRICAL SYSTEM
Battery	100 Ah
Alternator	AF 2.90 N: 80 A · AF 2.100 N: 90 A
Starter motor	4.2 kW
TRANSMISSION
Gearbox (standard)	24+24 — 24 forward, 24 reverse
Gearbox (optional)	24+12 — 24 forward, 12 reverse
Gear ratios	4 synchro gear ratios
Ranges	3 ranges: slow / medium / fast
HI-LO	24+24: mechanical · 24+12: electro-hydraulic
Shuttle	24+24: mechanical · 24+12: electro-hydraulic
Minimum speed	0.5 km/h (with 14.9R28 rear tyres)
Maximum speed	40 km/h (with 14.9R28 rear tyres)
POWER TAKE-OFF (PTO)
Mechanical PTO	540 and 540/540 E rpm (dry disc clutch)
Synchro PTO (mechanical)	Optional
Electro-hydraulic PTO	540/540 rpm
Synchro PTO (electro-hydraulic)	Standard
Speedometer on dashboard	Standard
CLUTCH AND BRAKES
Clutch	Independent, dry, 11"
Brake action	Integrated mechanical and hydraulic
Brake configuration	Oil-bath disc
AXLES AND DIFFERENTIAL
Rear differential locking	Mechanical type, electro-hydraulic engagement
Front axle — maximum steering angle	52°
Front axle — oscillation angle	8°
Front axle — flange distance	1,325 mm
4WD engagement	Electro-hydraulic
Front differential	Limited slip
Rear axle — type	Planetary
Rear axle — ratio	6:1
Rear axle — flange distance	1,242 mm
HYDRAULIC SYSTEM
Pump capacity (standard, 2 pumps)	61.2 + 24.8 l/min
Pump capacity (optional, 3 pumps)	41.5 + 35 + 24.8 l/min
Spool valves	2 double-acting valves (4 rear outlets) + flow divider; 3 double-acting valves (6 rear outlets); 3 double-acting valves (6 rear + 4 mid-mounted outlets)

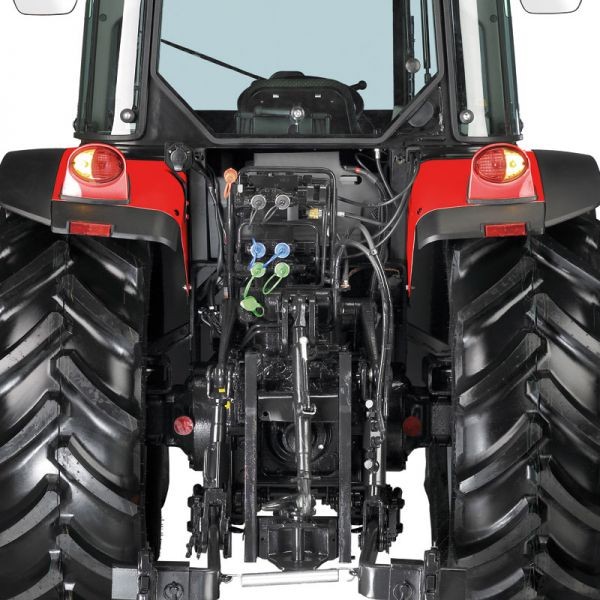

HITCH AND POWER LIFT
Maximum lifting capacity	2,600 kg (standard) · 3,000 kg (optional)
Lift control	Mechanical — position, draft and mixed control (standard) · Electronic (optional)
Three-point hitch	Cat. 1 / 1N / 2
Linkages	Ball joint fixed Cat. 2; ball joint adjustable Cat. 1/1N/2; quick-coupling adjustable Cat. 2/1/1N
Tow hook	Cuna C (standard), Cuna EC (standard), Cuna C + swinging drawbar (optional)
Ballasts (optional)	Front: 6 × 30 kg (180 kg) · Rear wheel ballasts

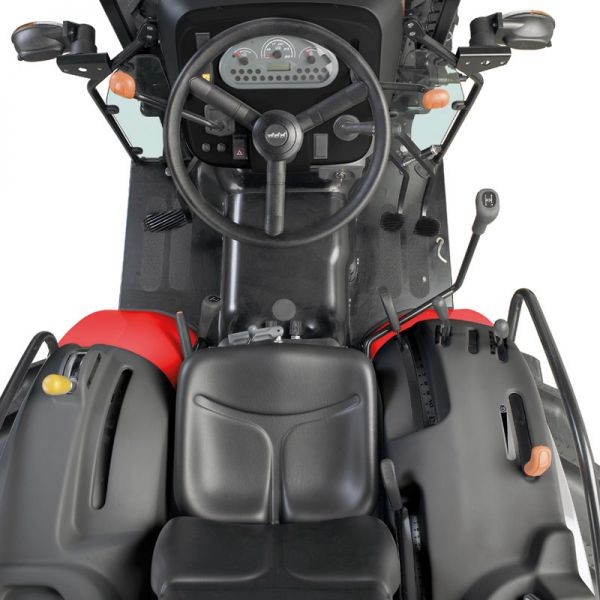

PLATFORM VERSION
Platform	Suspended on 4 silent blocks, soundproof
ROPS	Folding front ROPS
Seat (platform)	Suspended, mechanical, PVC
Mirrors (platform)	1 left telescopic (standard) · 1 right (optional)

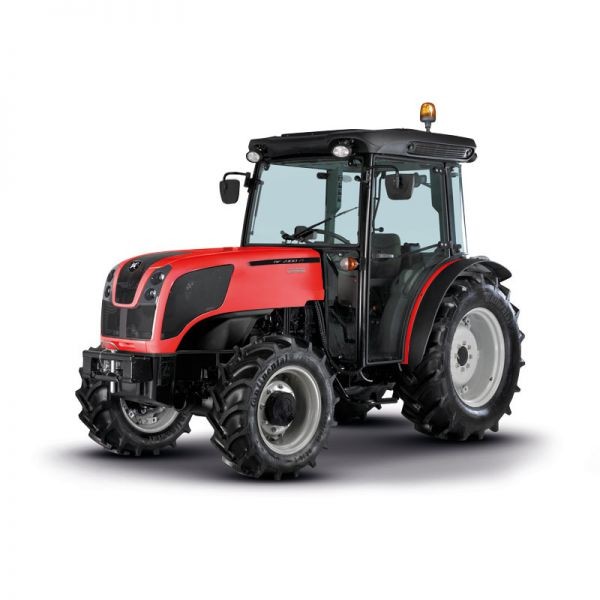

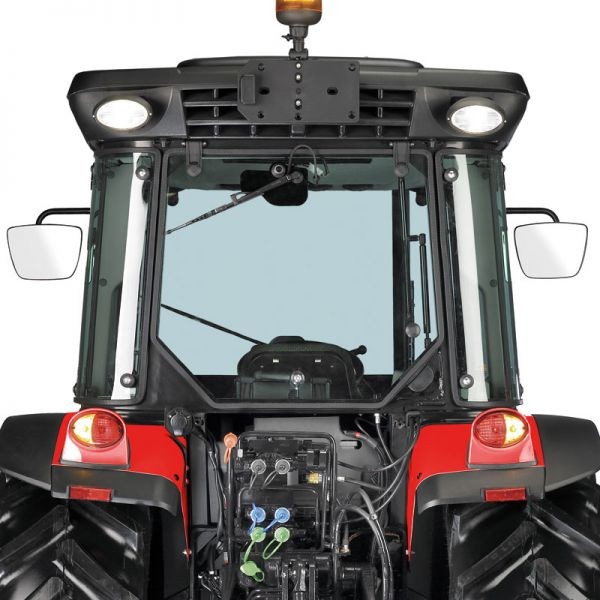

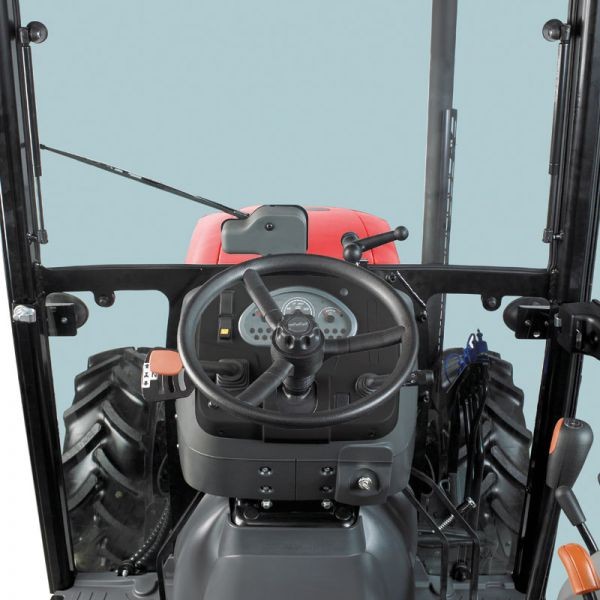

CAB VERSION
Cab	Suspended on 4 silent blocks, soundproof, ventilated and heated (standard)
Air conditioning	Optional
Steering column	Fixed (standard) · telescopic and reclining (optional)
Seat (cab)	Suspended, pneumatic, fabric
Mirrors (cab)	2 external (right and left) · 1 internal (optional)
Instrument panel	Multifunctional
DIMENSIONS AND WEIGHT
Length (A)	3,991 mm
Length with hitch (A1)	4,316 mm
Maximum width (B)	1,980 mm
Height (C)	Cab: 2,385 mm · Platform: 2,533 mm
Wheelbase (D)	2,074 mm
Front track (E)	997 ÷ 1,625 mm
Rear track (E)	1,102 ÷ 1,646 mm
Ground clearance (G)	Front 295 mm · rear 355 mm
Front wheels	320/70R20
Rear wheels	14.9R28 / 380/85R28
Weight (without ballast)	Cab: 2,965 kg · Platform: 2,730 kg
Note	With the NEF engine, dimensions A, A1 and D increase by 87 mm and weight by 70 kg.
